Double the Heads. Double the Speed. Professional Precision.
Key Benefits
- Dual Filling Heads: Two simultaneous heads help increase production capacity without requiring two separate single-head machines.
- Pneumatic Precision Technology: The air-driven filling system supports consistent, repeatable filling with a stated ±2% variance.
- Wide Volume Range: The main configuration accommodates 100–1000 ml, while the additional gravity filling configuration starts from 10 ml and is listed as suitable for unlimited filling volume.
- Multiple Filling Configurations: Choose between the dual-head pneumatic setup and the additional gravity liquid filling configuration according to your production requirements.
- Efficient Production: The dual-head system is designed to increase output, while the additional configuration provides a stated production rate of 20–30 pieces per minute.
- Flexible Power Options: The main machine is available with 110V / 220V power, while the additional configuration operates at 220V / 50–60Hz.
- Compact Equipment Footprint: The dual-head design allows two filling operations to take place within one machine rather than requiring two separate filling units.
- Professional Consistency: The main machine provides a stated ±2% filling variance to support more consistent product volumes.
Doubling Production Without Doubling Complexity
Single-head filling machines can create bottlenecks in growing operations, particularly when demand increases during seasonal peaks or when adding new product lines.

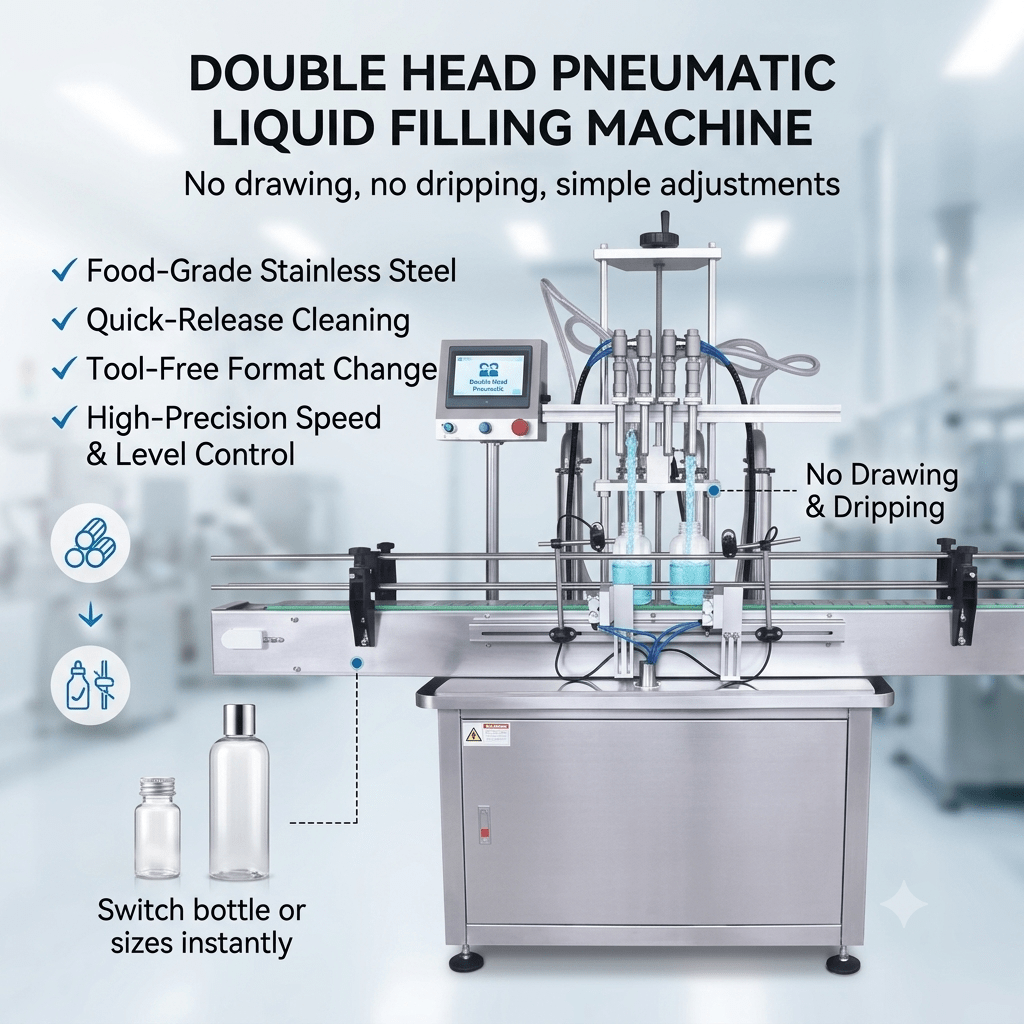

The Automatic Double Head Pneumatic Liquid Filling Machine addresses this by operating two filling heads simultaneously. This allows your team to increase daily output while managing the filling process through one integrated machine. Unlike using two separate single-head machines, the dual-head design combines the filling operation into one system, helping reduce equipment duplication, space requirements and operational complexity.
Pneumatic Technology Advantages Over Mechanical Systems
Compressed air filling provides a controlled method of dispensing liquid into containers. The pneumatic system is designed to provide repeatable filling while reducing the mechanical friction associated with some conventional filling systems.
The main machine uses a standard compressed air supply of 6–8 bar, while the additional gravity liquid filling configuration lists an air pressure requirement of 0.4–0.6 MPa. This gives you different filling configurations to consider depending on your product, production environment and equipment requirements.
Scalable Growth Without Equipment Replacement
As your beverage or food production operation grows, having equipment that can support different production requirements can help you avoid unnecessary equipment changes.
The dual-head configuration provides two simultaneous filling heads with a 100–1000 ml filling range, while the additional gravity liquid filling configuration provides a broader starting range of 10 ml and a stated capacity of 20–30 pieces per minute. The appropriate configuration will depend on your required fill volume, production rate and container application. Contact YES with your product and production requirements so the suitable setup can be confirmed.
Consumer Benefits
- Consistent Fill Quality: Pneumatic filling helps provide more uniform fill levels across production runs.
- Reduced Product Waste: More controlled filling can help minimise unnecessary overfilling and product loss.
- Reliable Product Presentation: Consistent fill levels create a more uniform appearance across packaged products.
- Faster Production: Dual filling heads allow two containers to be filled simultaneously.
- Flexible Packaging Volumes: Different filling configurations provide options for different product volumes.
- Reliable Daily Operation: Designed to support regular production requirements.
- Lower Operational Complexity: A dual-head system combines two filling operations into one machine.
- Support for Business Growth: Higher production capability can help businesses handle increasing order volumes.
Technical Specifications

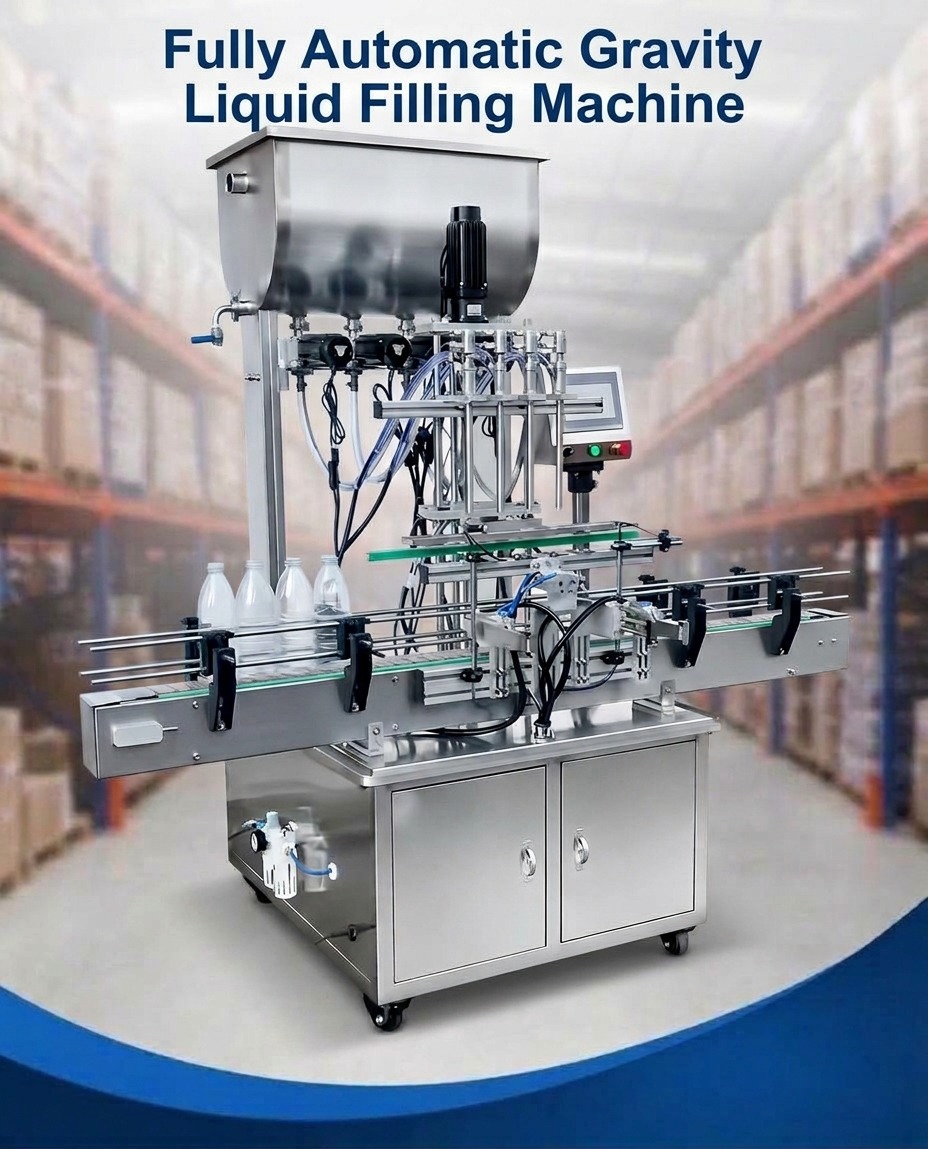

| Specification | Automatic Double Head Pneumatic Filling Machine | Fully Automatic Gravity Liquid Filling Machine – Cylinder & Gear Pump |
|---|---|---|
| Machine Type | Automatic Double Head Pneumatic Filling | Fully Automatic Gravity Liquid Filling Machine |
| Filling Range | 100–1000 ml | 10 ml – Unlimited |
| Number of Heads | 2 (simultaneous operation) | — |
| Operation | Horizontal | — |
| Filling Accuracy | ±2% variance | — |
| Container Compatibility | Bottles, containers, jars 100–1000 ml capacity | — |
| Air Pressure | Standard compressed air supply (6–8 bar) | 0.4–0.6 MPa |
| Production Rate | Significantly increased with dual heads | 20–30 pcs/min |
| Material | Stainless Steel (contact surfaces) | — |
| Power Supply | 110V / 220V available | 220V / 50–60Hz |
| Power | — | 0.15 kW |
| Machine Dimensions | — | 78.74 × 41.34 × 64.96 in (2000 × 1050 × 1650 mm) |
| Certification | Commercial Grade | — |
Top Ten FAQs About Our Automatic Double Head Pneumatic Liquid Filling Machine
The main machine fills from 100–1000 ml. The additional gravity filling configuration is listed with a range of 10 ml–unlimited.
The machine features two filling heads operating simultaneously, doubling production efficiency.
The dual-head configuration is designed for increased production, while the additional gravity filling configuration has a stated rate of 20–30 pieces per minute.
This machine accommodates water, juices, oils, sauces, beverages, and various liquid products.
The pneumatic system uses compressed air for accurate, repeatable filling without mechanical friction.
The main machine uses a standard compressed air supply of 6–8 bar. The additional gravity configuration lists 0.4–0.6 MPa.
Yes. The main configuration covers 100–1000 ml, while the additional gravity configuration starts at 10 ml.
The machine operates on compressed air supply with standard electrical power for control systems.
This depends on your required filling volume, production speed, product and container requirements. Contact YES with your application details so the appropriate configuration can be confirmed.
Precision pneumatic controls ensure consistent fill levels, reducing product waste and ensuring customer satisfaction.
Trusted Commercial Equipment Supplier Since 2014 – YES
Your Equipment Suppliers (YES) supplies reliable commercial equipment, machinery, packaging solutions, and accessories to businesses worldwide.
Since 2014, YES has worked with businesses across different industries to source equipment suited to their operational needs, production requirements, and growth plans. We provide expert consultation, equipment sourcing, installation support, and ongoing technical assistance to help customers get the most from their equipment investment.
Click below to see real customer reviews.
Ready to Increase Your Filling Production?
Ready to improve your filling speed, consistency and overall production workflow? Contact YES today for pricing, availability and expert guidance on choosing the right filling equipment for your operation. Our team can help you review your production requirements and determine the most suitable configuration for your business.
