Heat, Mix, and Process More Efficiently.

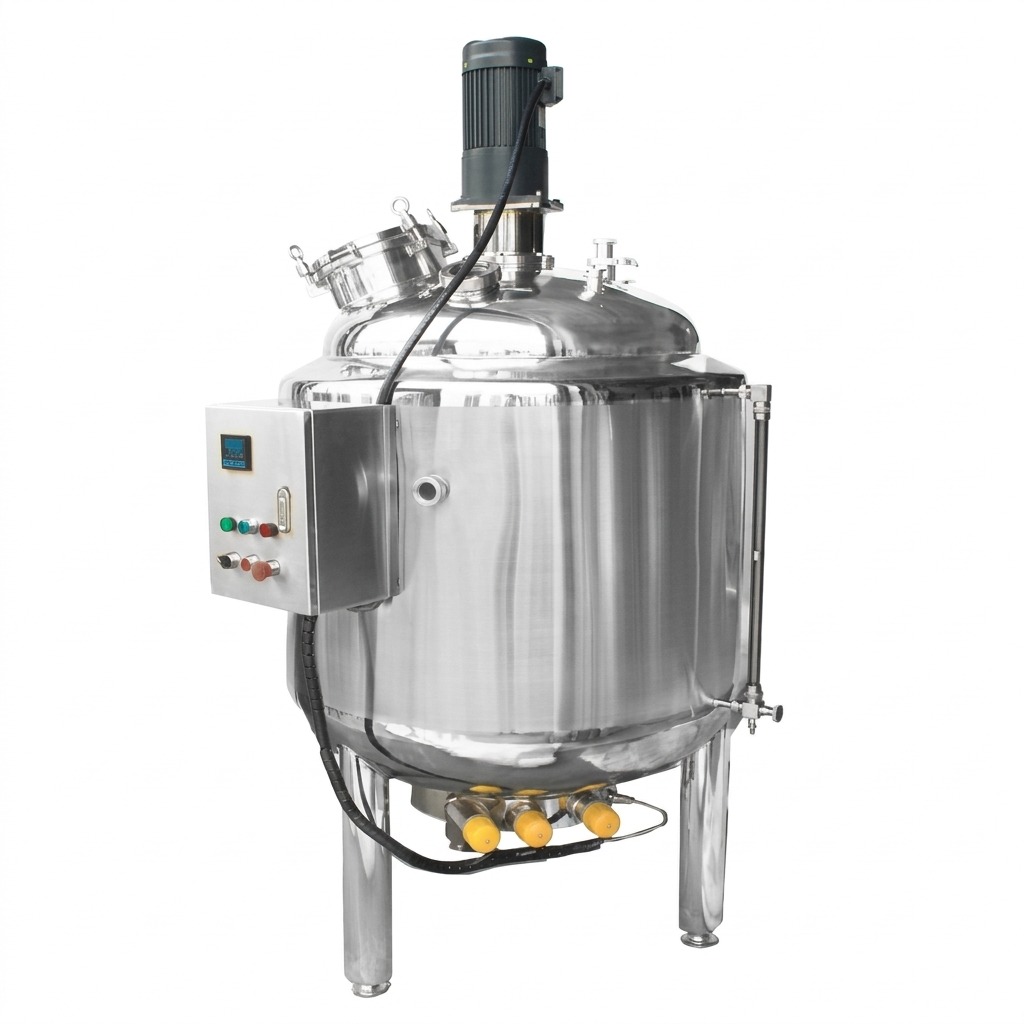

The Pasteuriser with Built-In Agitator is designed for businesses that need controlled heating and mixing within the same processing system. Combining a 24 kW heating system, built-in agitator, and high-shear mixing capability, this equipment provides multiple processing functions in one machine. Constructed from stainless steel, the Pasteuriser is designed for commercial processing environments where reliable equipment and consistent mixing are important. The built-in agitator operates at 36 rpm, helping keep the product moving during processing. The machine also features a 3 kW high-shear system with an adjustable speed range of 0–2,880 rpm, giving your business greater flexibility when processing products that require more intensive mixing.
Key Benefits
- Powerful Heating: 24 kW heating power provides the heating capability specified for the pasteurising system.
- Built-In Agitator: Integrated mixing keeps the product moving during processing at 36 rpm.
- High-Shear Mixing: 3 kW high-shear system with speeds from 0–2,880 rpm provides intensive mixing capability.
- Construction: Stainless steel construction is suited to commercial processing environments.
- Multiple Processing Functions: Combines heating, standard mixing, and high-shear mixing in one machine.
- Three-Phase Operation: Designed for a 220V, 60Hz three-phase electrical supply.
Simplify Your Heating and Mixing Process
Bring two essential processing functions together in one machine. The Pasteuriser combines 24 kW of heating power with a built-in agitator, allowing your product to be heated and continuously mixed within the same processing system. The agitator operates at 36 rpm, helping keep your product moving during processing. By combining heating and agitation in one unit, you can streamline your workflow while reducing the need to manage separate processing stages.
Get More Control with High-Shear Mixing
When your product requires more intensive mixing, the built-in 3 kW high-shear system gives you an additional level of processing capability. With speeds adjustable from 0 to 2,880 rpm, you have greater control over the intensity of the mixing process. Having both standard agitation and high-shear mixing in one machine gives your production team the flexibility to adjust the processing approach according to your requirements, while keeping multiple functions within a single system.
Built for Serious Commercial Processing
The stainless steel construction gives the Pasteuriser a professional build suited to commercial processing environments. The machine operates on a 220V, 60Hz three-phase power supply and combines heating, agitation, and high-shear mixing in one substantial processing unit. With an inner tank diameter of 33.46 inches, an outer diameter of 41.34 inches, and overall dimensions of approximately 53.15 × 43.31 × 74.80 inches, the Pasteuriser provides a substantial processing system for businesses looking to build or expand their production capabilities.
Consumer Benefits
- More Efficient Processing: Heating and mixing functions are combined into one machine, helping streamline your production workflow.
- Controlled Mixing: The built-in agitator provides consistent mixing during the heating process.
- High-Shear Capability: The additional high-shear system provides greater flexibility for products requiring intensive mixing.
- Powerful Heating: 24 kW of heating power supports the machine’s pasteurising function.
- Flexible Operation: High-shear speed can be adjusted from 0–2,880 rpm according to processing requirements.
- Durable Construction: Stainless steel construction is suited to commercial processing environments.
- Integrated Equipment: Multiple processing functions are brought together in one machine rather than requiring separate equipment.
- Commercial Production: The three-phase electrical configuration is designed for commercial processing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Pasteuriser with Built-In Agitator |
| Material | Stainless Steel |
| Power Supply | 220V / 60Hz / Three-Phase |
| Heating Power | 24 kW |
| Mixing Power | 0.37 kW |
| Mixing Speed | 36 rpm |
| High-Shear Power | 3 kW |
| High-Shear Speed | 0–2,880 rpm |
| Tank Diameter – Inner | 850 mm / 33.46 in |
| Tank Diameter – Outer | 1,050 mm / 41.34 in |
| Dimensions (L × W × H) | 53.15 × 43.31 × 74.80 in (1,350 × 1,100 × 1,900 mm) |
Top Ten FAQs About Our Pasteuriser with Built-In Agitator
The machine is designed to combine heating, standard mixing, and high-shear mixing within one processing system.
Yes. It features a built-in agitator with a mixing power of 0.37 kW and a mixing speed of 36 rpm.
The Pasteuriser has 24 kW of heating power.
Yes. The machine features a 3 kW high-shear system.
The high-shear system has an adjustable speed range of 0–2,880 rpm.
The machine is constructed from stainless steel.
The specified power supply is 220V, 60Hz, three-phase.
The inner tank diameter is 850 mm, while the outer tank diameter is 1,050 mm.
The machine measures approximately 53.15 × 43.31 × 74.80 inches.
Yes. YES offers installation guidance, technical assistance, spare parts and ongoing customer support.
Trusted Commercial Equipment Supplier Since 2014 – YES
Your Equipment Suppliers (YES) supplies reliable commercial equipment, machinery, packaging solutions, and accessories to businesses worldwide.
Since 2014, YES has worked with businesses across different industries to source equipment suited to their operational needs, production requirements, and growth plans. We provide expert consultation, equipment sourcing, installation support, and ongoing technical assistance to help customers get the most from their equipment investment.
Click below to see real customer reviews.
Ready to Improve Your Processing?
Bring heating, agitation, and high-shear mixing together with the Pasteuriser with Built-In Agitator. Designed with 24 kW heating power, 0.37 kW agitation, and 3 kW high-shear mixing, it provides multiple processing functions in one commercial system.
Contact YES to learn more about the Pasteuriser and determine whether it is suitable for your production requirements.
