30-Ton Pressing Power. Efficient Extraction.
Key Benefits
- 30-Ton High-Pressure Pressing: The machine can reach a maximum working pressure of 30 tons, providing powerful pressing performance for juice extraction.
- Intermittent Pressing Technology: The intermittent pressing system is designed to improve juice extraction efficiency during production.
- 304 Stainless Steel Contact Parts: All parts that come into contact with materials are made from stainless steel for a suitable food-processing environment.
- Movable Pressing Barrel: Four wheels on the bottom of the pressing barrel make it convenient to move in and out.
- Strong Pressing Plate: The 375 mm diameter pressing plate has a 20 mm thickness and is designed to resist deformation during pressing.
- Stainless Steel Pressing Barrel: The inner barrel is made from stainless steel and features a 3 mm mesh hole diameter for filtration.
- Durable Frame Construction: The machine uses a carbon steel frame with a stainless steel outer cover for a sturdy commercial structure.

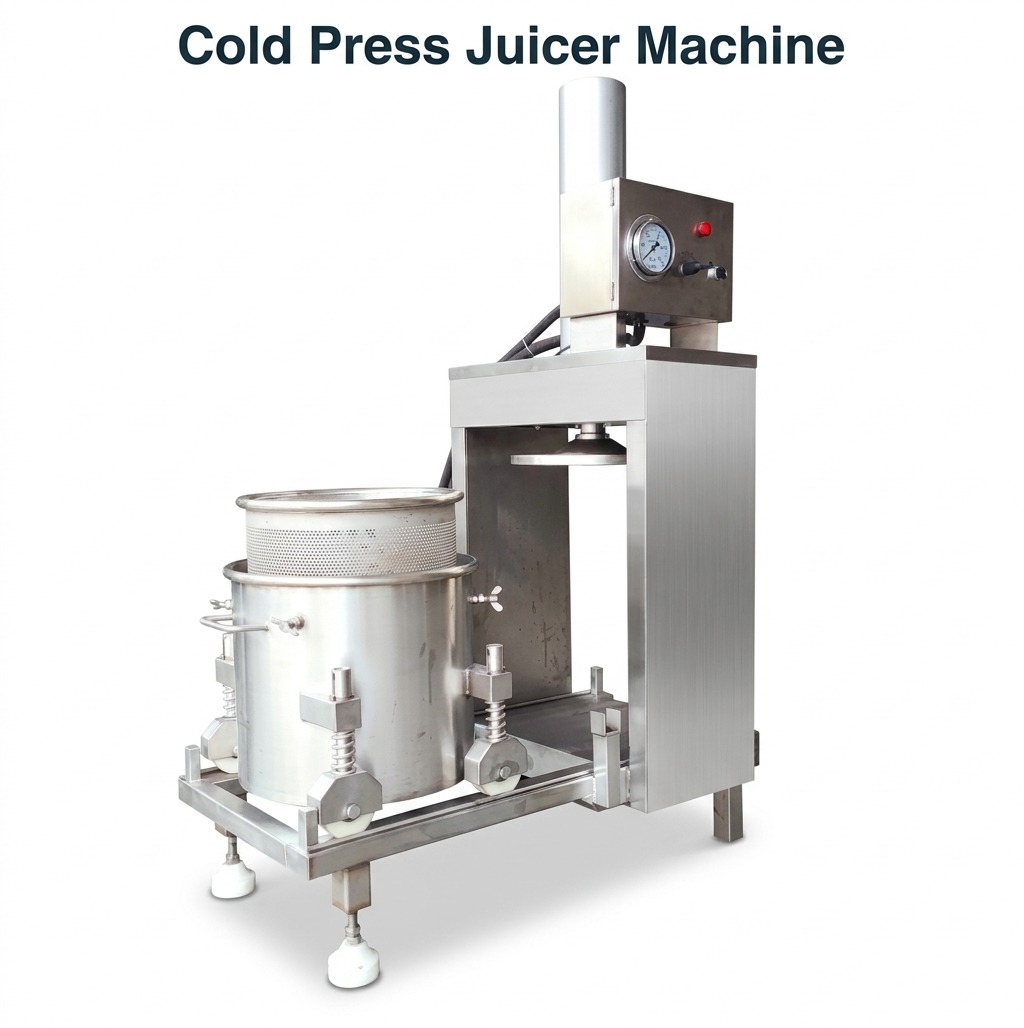

Practical Pressing Barrel Design
The pressing barrel is designed to provide a practical working area for juice extraction while remaining easy to move when required. The inner barrel has a 400 mm diameter and 500 mm height, with a 3 mm thickness, while the outer barrel measures 460 mm in diameter and 400 mm in height.
Four wheels are fitted to the bottom of the pressing barrel, allowing operators to move it in and out more conveniently. This movable design can help make loading, unloading, and cleaning more practical for busy juice-processing operations.
Powerful High-Pressure Juice Extraction

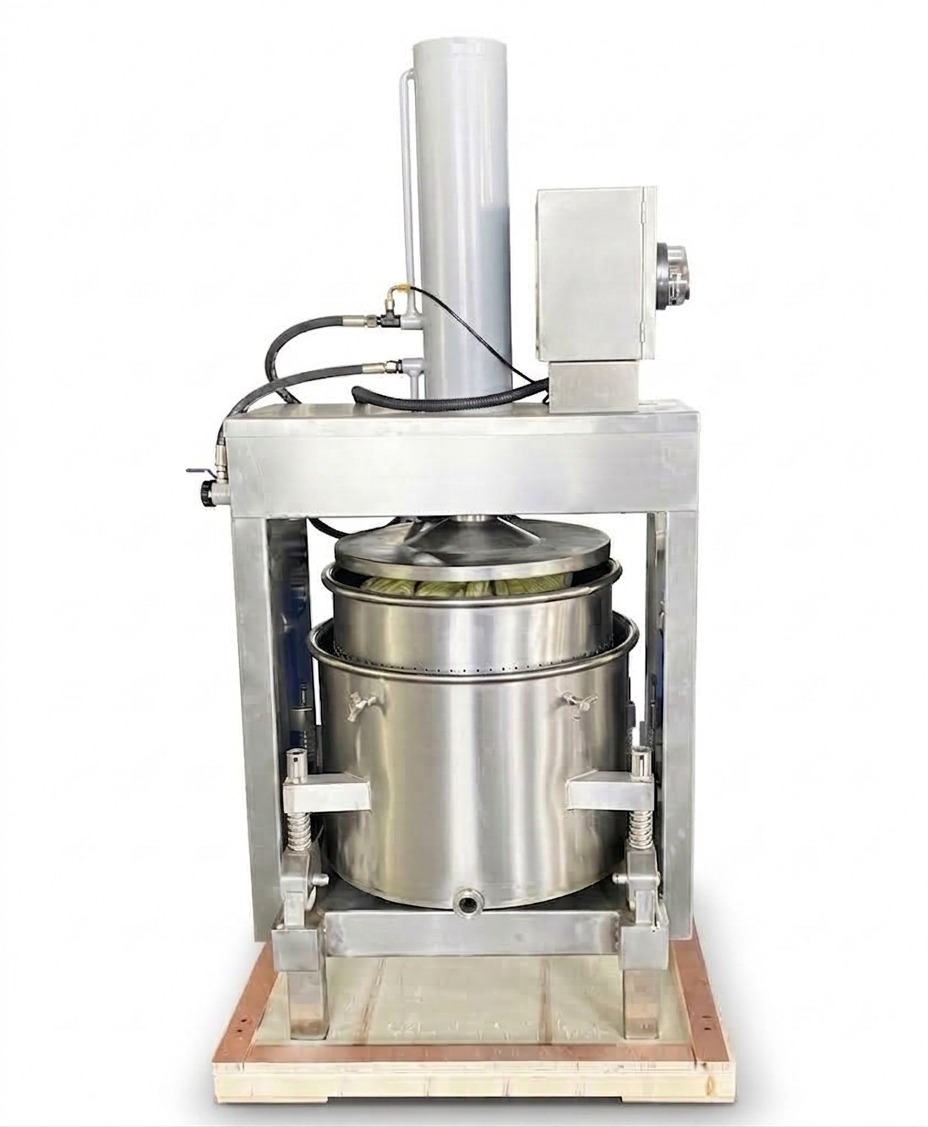

The Cold Press Juicer Machine uses high-pressure pressing technology with a maximum working pressure of 30 tons. This provides the machine with substantial pressing force for juice extraction while the intermittent pressing technology helps improve extraction efficiency.
The strong pressing plate is built with a 375 mm diameter and 20 mm thickness, providing a durable pressing surface designed to resist deformation during repeated use.
Food-Contact Stainless Steel Construction
Durability and suitable food-contact materials are important when selecting commercial juice-processing equipment. All parts of this Cold Press Juicer Machine that come into contact with materials are made from stainless steel.
The frame uses carbon steel with a stainless steel outer cover, providing a sturdy machine structure while maintaining a stainless steel exterior suitable for a commercial processing environment.
Consumer Benefits
- Fresh Juice Production: The high-pressure pressing system provides businesses with a practical way to process fresh juice for customers.
- Efficient Juice Extraction: Intermittent pressing technology is designed to improve juice extraction efficiency during operation.
- Reliable Pressing Performance: The 30-ton maximum working pressure and durable pressing plate provide strong pressing capability.
- Easy Barrel Movement: Four wheels make the pressing barrel easier to move in and out when required.
- Suitable Food-Contact Construction: Material-contact components are made from stainless steel for use in juice-processing applications.
- Practical Commercial Design: The machine combines a strong frame, stainless steel pressing components, and a movable barrel for commercial juice production.
- Convenient Filtration: The inner barrel features 3 mm mesh holes to support filtration during the pressing process.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Working Pressure | 30 tons |
| Pressing Technology | Intermittent pressing |
| Inner Barrel Diameter | 15.75 in (400 mm) |
| Inner Barrel Height | 19.69 in (500 mm) |
| Inner Barrel Thickness | 0.12 in (3 mm) |
| Outer Barrel Diameter | 18.11 in (460 mm) |
| Outer Barrel Height | 15.75 in (400 mm) |
| Pressing Barrel Material | Stainless steel |
| Barrel Mobility | Four wheels |
| Pressing Plate Diameter | 14.76 in (375 mm) |
| Pressing Plate Thickness | 0.79 in (20 mm) |
| Pressing Plate Construction | Strong and deformation-resistant |
| Inner Barrel Mesh Hole Diameter | 0.12 in (3 mm) |
| Material-Contact Parts | stainless steel |
| Frame Structure | Carbon steel |
| Outer Cover | stainless steel |
Top Ten FAQs About Our Cold Press Juicer Machine
The Cold Press Juicer Machine can reach a maximum working pressure of 30 tons.
The machine uses intermittent pressing technology, which is designed to improve juice extraction efficiency.
Yes. The pressing barrel is equipped with four wheels at the bottom, making it convenient to move in and out.
The inner barrel has a diameter of approximately 15.75 inches (400mm) and a height of approximately 19.69 inches (500mm).
All parts that come into contact with materials are made from stainless steel.
The pressing plate has a thickness of 0.79 inches (20mm) and a diameter of 14.76 inches (375mm).
The inner barrel has a mesh hole diameter of approximately 0.12 inches (3mm).
The machine is designed with a 30-ton pressing capacity, stainless steel material-contact parts, and a durable frame structure, making it suitable for commercial juice-processing applications.
The frame structure is made from carbon steel with a stainless steel outer cover.
Yes. Your Equipment Suppliers provides after sales support for customers.
Trusted Commercial Equipment Supplier Since 2014 – YES
Your Equipment Suppliers (YES) helps Caribbean food and beverage businesses source reliable commercial equipment for their operations. From juice bars and cafés to food processors and growing production businesses, we help entrepreneurs find practical equipment suited to their production needs.
Our team can assist you with selecting commercial machinery, understanding equipment specifications, and finding solutions that fit your business and production requirements.
