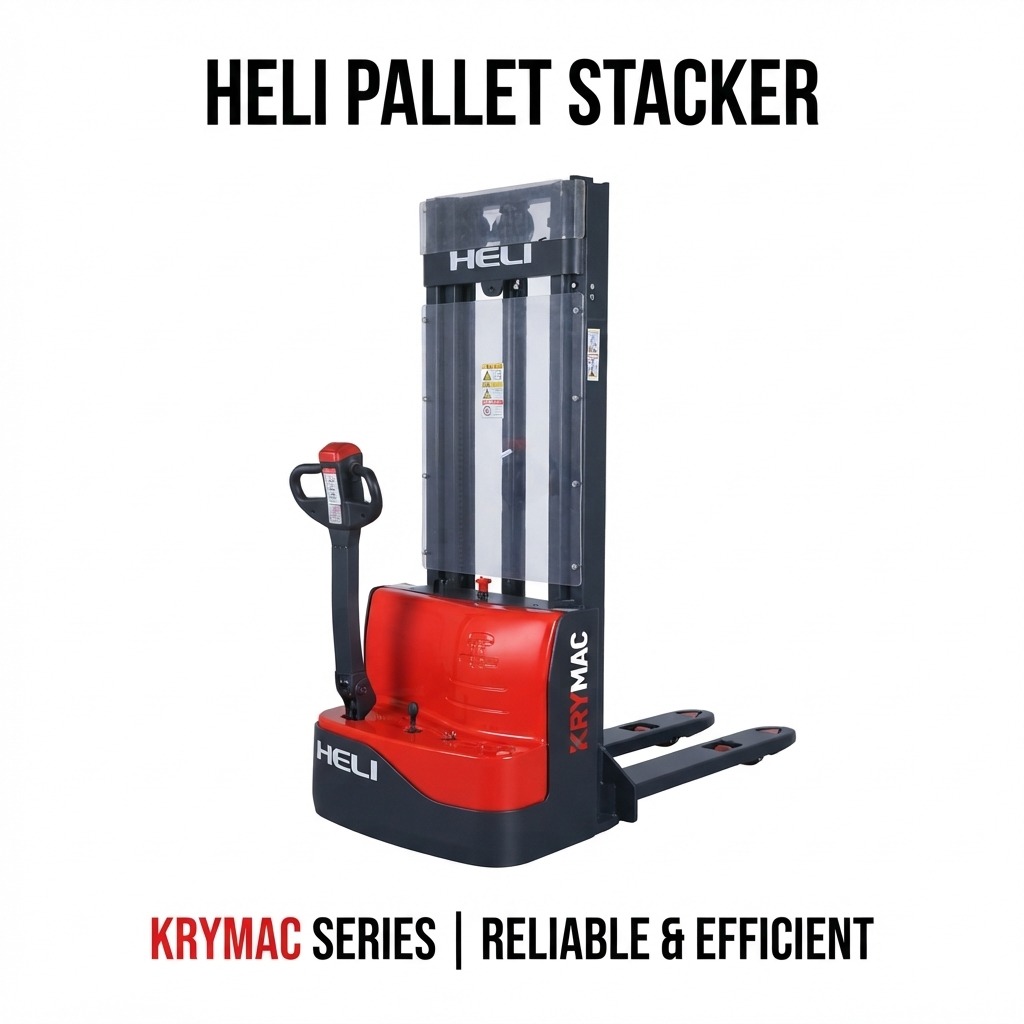

Stack Your Pallets Easily
The Heli Pallet Stacker is designed to meet the demands of modern indoor material handling. With a rated capacity of 1.5 tons and a lift height of three meters, it supports efficient pallet transport and stacking in warehouses, retail stockrooms, and logistics facilities. Pedestrian propelled operation provides clear visibility and precise control in tight spaces.
An electric side shifter enhances accuracy when aligning pallets on racking or loading points, while polyurethane wheels ensure smooth travel on finished floors. Mechanical steering delivers consistent handling and long-term reliability. With up to six hours of working time, this Heli Pallet Stacker is built for dependable performance throughout the workday.
Key Features
- 1.5 Ton Load Capacity: Handles heavy pallets safely, reducing manual lifting and improving workflow efficiency across daily operations.
- Electric Side Shifter: Enables precise pallet alignment without repositioning the entire stacker, saving time and reducing product damage.
- Three Meter Lift Height: Allows vertical stacking on racking systems, helping businesses maximize available storage space.
- Pedestrian Propelled Operation: Provides excellent visibility and control in narrow aisles and confined indoor environments.
- Polyurethane Wheels: Ensure smooth, quiet movement on indoor flooring while protecting finished surfaces.
- Mechanical Steering System: Delivers dependable handling with minimal maintenance requirements.
Precision Handling with Electric Side Shifter
The electric side shifter allows operators to fine-tune pallet positioning during stacking and retrieval. This reduces repeated adjustments, speeds up handling tasks, and minimizes the risk of damaged goods. Over long shifts, this directly improves productivity and operator comfort. Accurate placement also enhances overall warehouse safety and organization.
Compact Design with Strong Lifting Power
Despite its 1.5 ton rated capacity, the Heli Pallet Stacker maintains a compact footprint and tight turning radius. This makes it well-suited for narrow aisles, back-of-house storage areas, and retail stockrooms. Operators gain the ability to handle heavier loads without sacrificing maneuverability. Stability remains consistent throughout lifting and lowering.
Optimized for Indoor Operations
Every component is designed for indoor use, from polyurethane wheels to controlled manual operation. The stacker moves smoothly across warehouse floors and performs reliably during continuous daily use. Noise is kept low, and floor wear is minimized. This makes it ideal for professional indoor environments where efficiency and care matter.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | HELI |
| Product Type | Manual Pallet Stacker with Electric Side Shifter |
| Rated Capacity | 3,307 lbs (1,500 kg) |
| Lift Height | 118.1 inches (3 m) |
| Working Time | Up to 6 hours |
| Fork Length | 45.3 inches (1,150 mm) |
| Fork Width | 6.3 inches (160 mm) |
| Load Centre Distance | 19.7 inches (500 mm) |
| Loader Centre | 23.6 inches (600 mm) |
| Mast Type | Two-stage mast |
| Mast Height | 63.0 inches (1,600 mm) – Single Mast |
| Operating Mode | Manual operation |
| Operation | Pedestrian propelled |
| Steering Type | Mechanical steering |
| Minimum Turning Radius | 52.8 inches (1,342 mm) |
| Overall Dimensions | 68.5 × 31.3 × 79.3 inches (1,740 × 795 × 2,014 mm) |
| Terrain Suitability | Indoor flooring |
Top Ten FAQs About Our Heli Pallet Stacker
No. It is manually operated with an electric side shifter for precise pallet positioning.
The stacker is rated to handle up to 1.5 tonnes.
It can lift pallets up to three meters.
It is designed primarily for indoor flooring environments.
It uses polyurethane wheels for smooth indoor operation.
Yes. Its compact design and tight turning radius make it suitable for confined spaces.
It offers up to six hours of working time depending on usage.
Yes. The unit comes equipped with an electric side shifter.
Basic training is recommended, though operation is straightforward.
Warehousing, retail stockrooms, logistics centers, and light industrial facilities.
